- > Bright LCD Touchscreen Control
- > Default "Automode" setting suitable for majority of sample types
- > Create and save custom Recipes exactly for your specific sample needs
- > Easy view placement of Micro Metering Valves with Vernier Handles
- > Slow Fill feature protects the most delicate samples
- > Internal 0.5µm particulate filtration protects valves and samples
- > LCO2 Tank trace Oil/Water/0.5µm In-line Delivery Filtration
- > External 0.5µm Post-Purge filter allows for simple maintenance
- > Fast adiabatic chamber cooling (Less than one minute for the 1.25" chamber)
- > Internal SOTER™ Condenser quietly separates waste alcohol and CO2
- > EZ top loading process chamber with LED illumination
- > Maintenance Free Non-Mechanical Vortex Swirl™ Purge Stirring
- > "Stasis Software" for drying GELS and other challenging sample types
- > Post Process Data Review
- > All components meet CE, UL and/or U.S. Military specifications
- > 2 year warranty on all parts and labor
- > Made in U.S.A.
SPECIFICATIONS
- > Cabinet: (W) 15.0" (38.0cm) x (H) 13.25" (33.5cm) x (D) 20" (50.8cm)
- > System Set-Up Area Required: (W) 24" (61cm) x (D) 22" (56cm)
- > Chamber Size (Available in three sizes):
- · 1.25" ID x 1.25" Depth (31.75mm ID x 31.75mm Depth) - 25 ml Volume
- · 2.50" ID x 1.25" Depth (63.50mm ID x 31.75mm Depth) - 100 ml Volum
- · 3.40" ID x 1.25" Depth (86.36mm ID x 31.75mm Depth) - 186 ml Volume
- > Pressure Gauge Range: 0- 2000 psi, Temperature Range - 30°C to 60°C
- > 120V or 220V Models Available
STANDARD ACCESSORIES
- > Flexible High-Pressure LCO2 Supply Hose, 5ft (1.5m)
(Note: Other lengths available upon request up to 50ft (15m)) - > External LCO2 Filtration System (#8784) removes water/oil and particulates down to 0.5 µm conveniently pre-installed onto your LCO2 High Pressure Hose
- > Static Free Exhaust Tubing
- > Flow Meter supplied allows precise BLEED Exhaust Calibration
- > Chamber insert included for 2.50" chamber and 3.40" chamber to reduce the chamber size down to 1.25"
- > Spare chamber O-rings (2), LED chamber lamp (1), and 5A slo-blow fuses (2)
- > User Manual and Check-Out Data Sheet
- > Installation Tool Kit
- > Free lifetime technical support
OPTIONAL ACCESSORIES
For all Autosamdri®-931
- > 8760-40: 5 AMP FUSE for SAMDRI® and Autosamdri®
- > 8770-13: LED CHAMBER LAMP for SAMDRI® and Autosamdri® (120V/60Hz)
- > 8770-32: HIGH-PRESSURE HOSE, 5ft
- > 8770-33: HIGH-PRESSURE HOSE, 10ft
- > 8784: LCO2 Filter Assembly for Non-Cleanroom CPD
- > 8784A: LCO2 FILTER ELEMENT for #8784
- > 8784B: O-Ring for #8784 LCO2 Filter Assembly Seal
- > 8784-05: Gasket for LCO2 Tank Connect
- > 8770-83B: 0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter
- > 8770-53: POWER CABLE
- > 8770-54: LCO2 TANK SCALE W/ REMOTE READOUT
- > 8770-94: Carboy, 1 gal capacity with 2 quick connect 1/4" hose barbs
- > 8770-95: Carboy, 2.5 gal capacity with 2 quick connect 1/4" hose barbs
- > 8770-51: O-Ring for 1.25" Chamber I.D. for Autosamdri®-931 (Non-Cleanroom version)
- > 8770-45: Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)
- > 8770-91: Acetone Package Kit for 1.25" Process Chamber
- > 8770-51/S25: O-Ring for Autosamdri®-931 with 2.5" I.D. Chamber (Non-Cleanroom version)
- > 8770-46: Flow Meter - Use with any 2.5", 3.4" and 4.0" dia. Autosamdri® Chamber (60 SCFH)
- > 8770-91A: Acetone Package Kit for 2.5" Process Chamber
- > 8770-51/S34T: Teflon® O-Ring for 3.4" Chamber I.D.
- > 8770-51/S34T-BR: Backing Ring for 3.4" Chamber I.D.
- > 8770-46: Flow Meter - Use with any 2.5", 3.4" and 4.0" dia. Autosamdri® Chamber (60 SCFH)
Chamber Size Options
- Brochure Download
- Chamber Size
- Chamber Volume
- Chamber Insert to reduce the chamber size down to 1.25" I.D.
- Average LCO2 Consumption
(10 minutes PURGE Time) - Maximum Number of Sample Holders per Process Run
- 1" Large Capacity Holder
- 2" Large Capacity Holder
- 3" Large Capacity Holder
3.40" Chamber
Cat.# 8787C
2.50" Chamber
Cat.# 8787B
1.25" Chamber
Cat.# 8787A
Download Brochure (PDF) 1.25" ID x 1.25" Depth
31.75mm ID x 31.75mm Depth25 ml X
1.5-2.0 LB
(0.6-1.0 Kg)1
Compatible X X
Autosamdri®-931 - 1.25" Chamber
1.25" Chamber Size
Autosamdri®-931 - 1.25" Chamber version
No Sample Holder Loaded
1.25" Chamber with a Sample Holder
Autosamdri®-931 - 1.25" Chamber with a tousimis® Sample Holder
Autosamdri®-931 - 2.50" Chamber
2.50" Chamber Size
Autosamdri®-931 - 2.50" Chamber version
No Sample Holder Loaded
2.50" Chamber with a Large Capacity Holder
Autosamdri®-931 - 2.50" Chamber with a Large Capacity Holder
2.50" Chamber with 4 x Sample Holders
Autosamdri®-931 - 2.50" Chamber with 4 x tousimis® Sample Holders
2.50" Chamber with a Chamber Insert
Autosamdri®-931 - 2.50" Chamber with a Chamber Insert installed
2.50" Chamber with a Chamber Insert and a Sample Holder
Autosamdri®-931 - 2.50" Chamber with a Chamber Insert and a tousimis® Sample Holder
Autosamdri®-931 - 3.40" Chamber
3.40" Chamber Size
Autosamdri®-931 - 3.40" Chamber version
No Sample Holder Loaded
3.40" Chamber with a Large Capacity Holder
Autosamdri®-931 - 3.40" Chamber with a Large Capacity Holder
3.40" Chamber with 8 x Sample Holders
Autosamdri®-931 - 3.40" Chamber with 8 x tousimis® Sample Holders
3.40" Chamber with 8 x Sample Holders
Autosamdri®-931 - 3.40" Chamber with 8 x tousimis® Sample Holders
3.40" Chamber with a Chamber Insert
Autosamdri®-931 - 3.40" Chamber with a Chamber Insert installed
3.40" Chamber with a Chamber Insert and a Sample Holder
Autosamdri®-931 - 3.40" Chamber with a Chamber Insert and a tousimis® Sample Holder

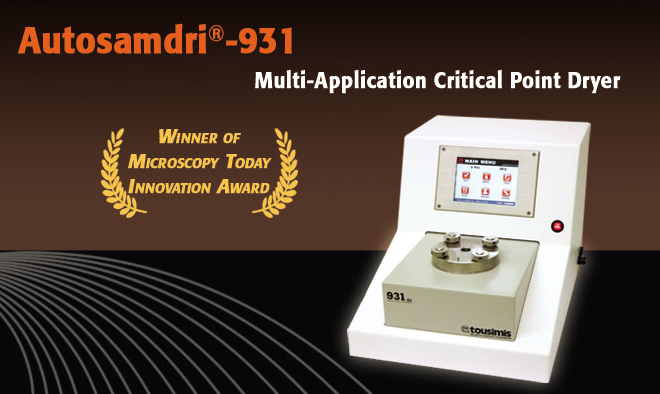

Tousimis CPD : Critical Point Dryer
Can be drying a sample without damage through the patented stasis mode.
